# Exchange Vaults

**Exchange Vault Introduction**

* Connect your Exchange trading accounts in PrimeVault and provision necessary access controls to admins to move funds between Core Vaults and Exchanges
* Automate Vault-to-Exchange and Exchange-to-Exchange transfers
* **Note:** **Exchange Vault is a custodial Vault where the funds are in your Exchange’s custody**
* The Vault in PrimeVault provides a permissioned framework to interact with assets sitting on linked Exchanges and enables single-window administration of funds across Exchanges
* We’ve enabled connections to a large number of exchanges via our partner’s APIs (Mesh)

**How to use an Exchange Vault**

* Create an Exchange Vault
* Withdrawing assets out of Exchange Vault
* Depositing assets into Exchange Vault

### **Create an Exchange Vault**

1. Create API Key & Secret Key on your exchange’s platform (requirement varies as per exchange).  Explained in the next section for different exchanges.<br>
2. Complete steps as per the Exchange Vault flow. Select the policy template, review the assets and submit.

<figure><img src="https://lh7-us.googleusercontent.com/mCyoqu24XPISDTfbuYZTjuy6AXRay8iDtuxnh1S3xreVJ64vuimv75mA0EXHWoZ0erhHv71rNpwXp7SAx4ve1t1rcqpZ33pqmOOThh6hYoTrC4kQq0rf_8lf-CQrxiBDh6khoJm-55Q-00LAJ5UDEXU" alt=""><figcaption></figcaption></figure>

***

### API Key Setup for Exchanges

#### **Kraken**

`Settings` -> `API` -> `Create API Key`

<figure><img src="https://2590719878-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F84EglBdaF51GAxppvd4g%2Fuploads%2FTBTdB27RnZ32kZmw8nED%2Fimage.png?alt=media&#x26;token=a6f13caa-3b18-487e-b18e-365a73b7fbca" alt=""><figcaption></figcaption></figure>

* Kraken Help Center [link](https://support.kraken.com/hc/en-us/articles/360000919966-How-to-create-an-API-key)
* Permissions: Query, Deposit and Withdraw
* IPs for whitelisting: `13.59.176.125`, `18.223.183.241`
* Nonce window: 10000

#### Coinbase International

* `API` -> `Create API Key`

<figure><img src="https://2590719878-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F84EglBdaF51GAxppvd4g%2Fuploads%2FUvJu65nhmjCibY7YLCfQ%2Fimage.png?alt=media&#x26;token=7b444a8a-7b2b-4bca-bd49-b7b61dc34ed7" alt="" width="563"><figcaption></figcaption></figure>

* Permissions -> `View` & `Transfer`
* IP Allowlist -> `54.151.154.241` and `18.136.156.129`

#### Coinbase Exchange

* API key setup similar as `Coinbase International` above.
* IP Allowlist -> `13.59.176.125` and `18.223.183.241`

#### Gateio

* Profile -> API Management -> Create API Key
* IPs to link: `13.59.176.125`, `18.223.183.241`
* Permissions
  * `Spot Trade` -> `Read Only`
  * `Wallet` -> `Read And Write`
  * `Withdraw` -> `Read And Write`
  * `Account` -> `Read And Write`

#### Mexc

`Profile` -> `API Management`

* Provide the permissions as below

<figure><img src="https://2590719878-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F84EglBdaF51GAxppvd4g%2Fuploads%2FdCHwkGwj2JNGZpRw9bEW%2Fimage.png?alt=media&#x26;token=36d8dd62-35fe-4d79-84e3-3b2128d82b75" alt="" width="563"><figcaption></figcaption></figure>

* IPs to link: 13.59.176.125, 18.223.183.241

#### Binance

* `Profile` -> `Settings` -> `Account` -> `API Management`

<figure><img src="https://2590719878-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F84EglBdaF51GAxppvd4g%2Fuploads%2FcHDkljo1vjdGszTcqTLc%2Fimage.png?alt=media&#x26;token=9a86bf1a-34b3-4810-82c1-7ec85b693352" alt=""><figcaption></figcaption></figure>

* IP Allowlist -> `54.151.154.241` and `18.136.156.129`
* Permissions
  * Enable Withdrawal

#### KuCoin

* `Profile` -> `API Management -> Create API Key`

<figure><img src="https://2590719878-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F84EglBdaF51GAxppvd4g%2Fuploads%2FaaSfgovQk6FSk7umcffF%2FScreenshot%202025-01-08%20at%204.08.20%E2%80%AFPM.png?alt=media&#x26;token=d2b14423-c307-4935-9644-27434702f4ae" alt=""><figcaption></figcaption></figure>

* IP Allowlist -> `54.151.154.241` and `18.136.156.129`
* `Permissions`
  * `Withdrawal`

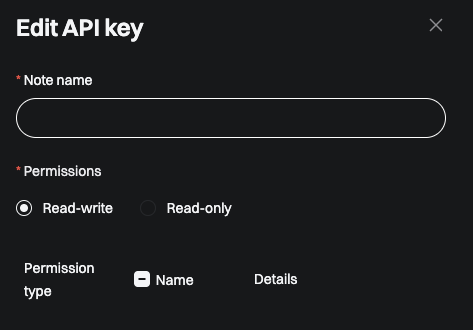

#### Bitget

`Profile` -> `API Key` -> `Create API Key`

* Enter name
* Permissions -> Read-write
* Permission type
  * Spot - Trade
  * Wallet - Transfer & Withdraw
* IP
  * 13.59.176.125, 18.223.183.241

<figure><img src="https://2590719878-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F84EglBdaF51GAxppvd4g%2Fuploads%2FfqzDAFQy5sUO2EJpu9wq%2Fimage.png?alt=media&#x26;token=905bf892-6cc1-4620-929c-b8ed8d394626" alt=""><figcaption></figcaption></figure>

#### ByBit

<figure><img src="https://2590719878-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F84EglBdaF51GAxppvd4g%2Fuploads%2FcTmndh7GqUUh2WnyVPiO%2Fimage.png?alt=media&#x26;token=5f454e3a-f01d-4612-b422-6b82cbdf7485" alt=""><figcaption></figcaption></figure>

IPs to whitelist

* `54.151.154.241` and `18.136.156.129`  (Comma separated and no space)

Permissions

* Assets
  * Account Transfer
  * Withdrawal

### **Withdrawing assets from Exchange Vault to Core Vault**

1. Whitelist core vault, other exchange vault and other addresses on the exchange using the specific exchange platform. This is a requirement to be able to withdraw funds from exchange account using PrimeVault.
2. In PrimeVault, to initiate transfer go to  `Transaction` -> `Transfer` and Select Exchange account, asset, chain, amount and counter party.
3. After all the inputs are provided, you will see the expected withdrawal fee computed based on the inputs.

<figure><img src="https://2590719878-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F84EglBdaF51GAxppvd4g%2Fuploads%2FIF2eczBjIy5FA7hk9sYX%2Fimage.png?alt=media&#x26;token=6442443b-19bb-4295-a636-b5a681d35fe6" alt="" width="375"><figcaption></figcaption></figure>

***

### **Depositing Assets into Exchange Vault from Core Vault**

1. Use the PrimeVault platform to initiate deposits into the exchange

![](https://lh7-us.googleusercontent.com/ej44hrEFl9EQMuIQq91s3XwKQ_PZCiQDgFP2iakFLFLikDh1CsCEBit0naKt1RXgFc5hRjAZOG9FJ3eW7t1I30QCr6QqOE9vSl3R4VVV6m7-Pn8A2nwY41P4iHSSCYFEz5zP0wKRL5P9n159Nc7vvg4)

***

### Cross Exchange Transfer

* Cross-Exchange transfer would be similar to deposit and withdraw actions.&#x20;
* First, whitelist the destination exchange’s deposit address for withdrawals on the source exchange.&#x20;
* When you initiate a transfer in PrimeVault, it will trigger a withdrawal from the source exchange to the destination exchange’s (deposit)address.

###
